NKX-55 NBR FOAM

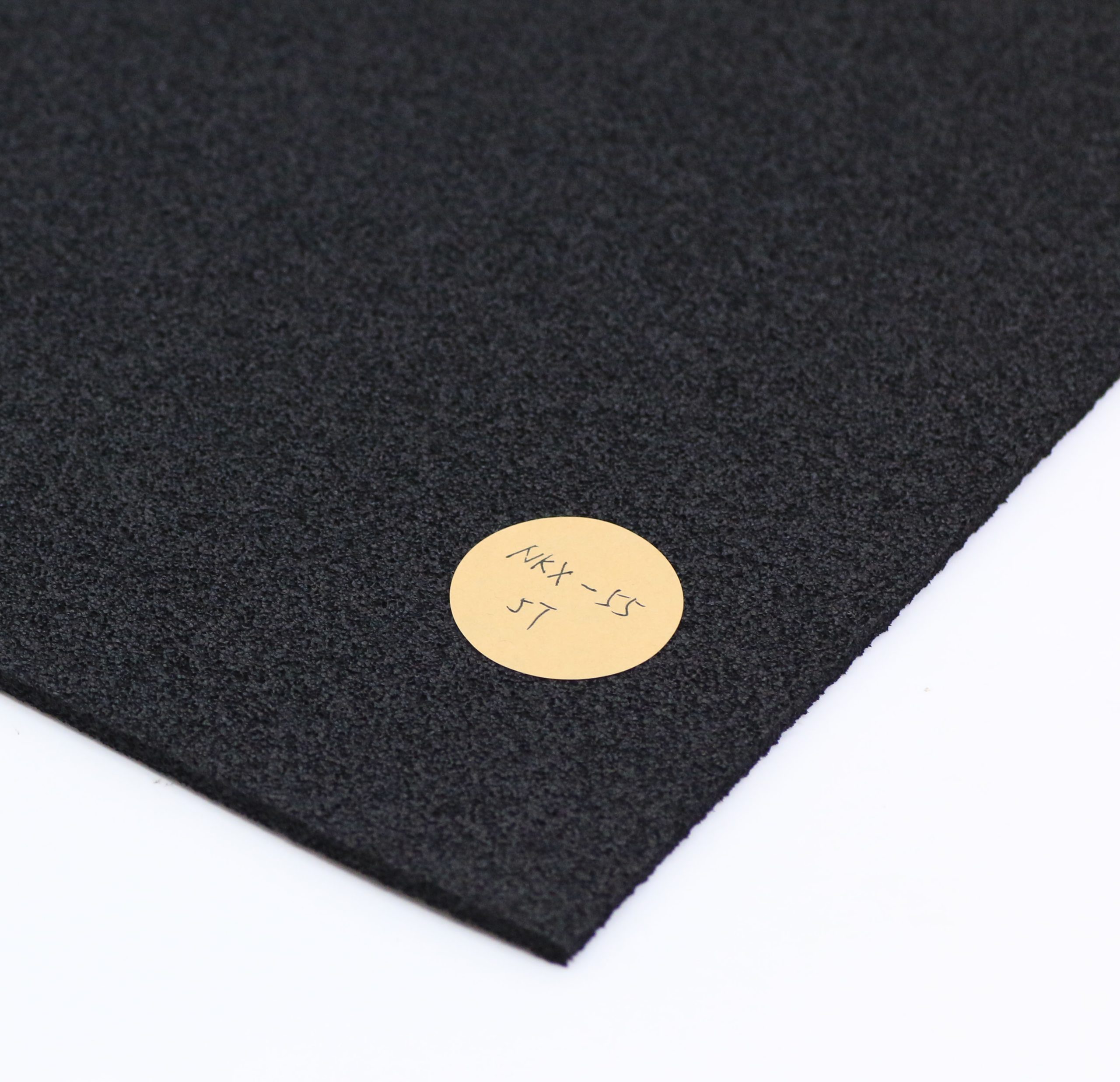

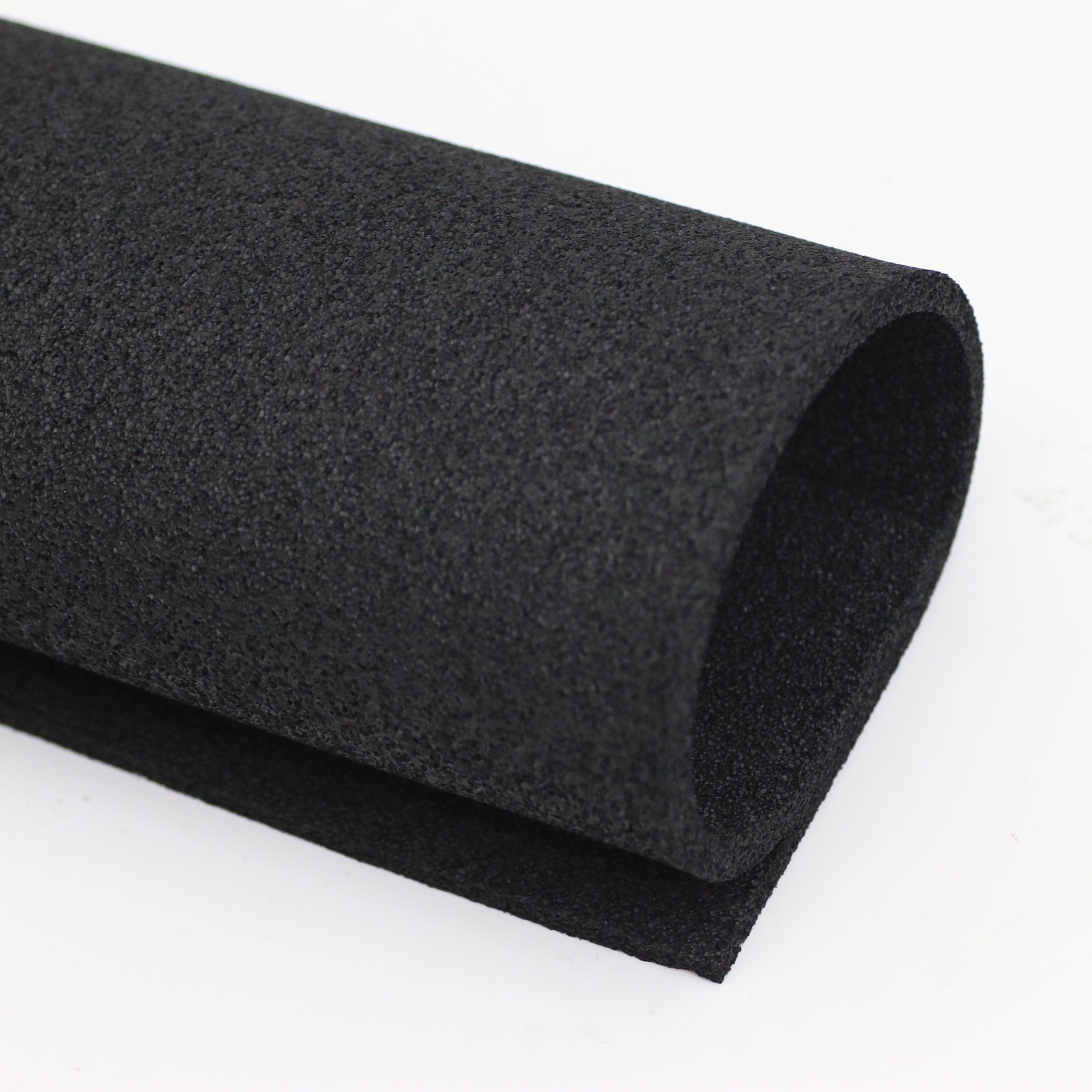

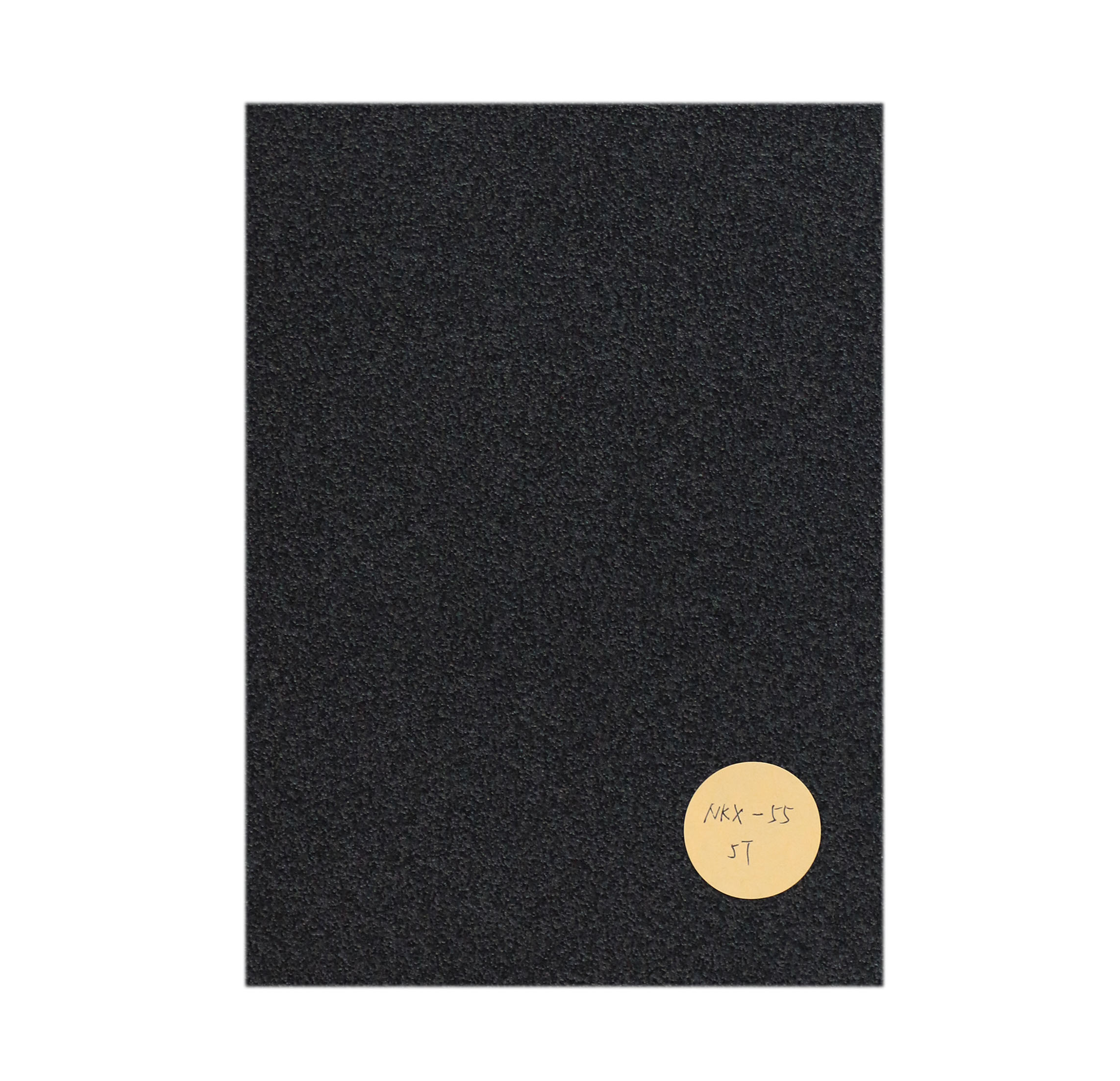

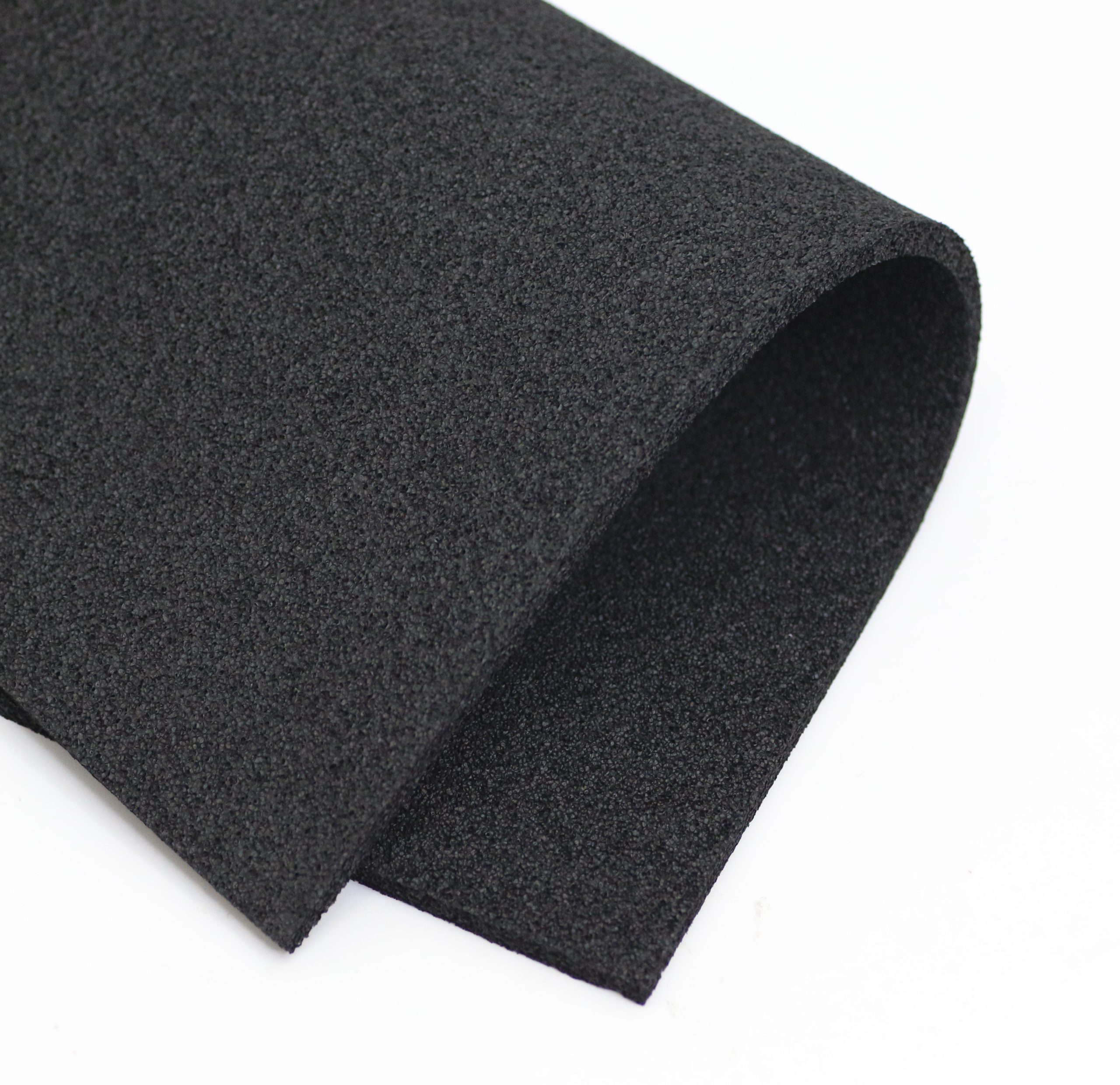

NKX-55 NBR FOAM

Use for: Adhesive Tape, Gasket; Material: NBR+PVC; Cell State: Open Cell; Test Standard: JIS, ASTM.

Categories: Open Cell

Product Details

Parameter	Details
Product Name	NKX-55 Open Cell NBR Foam
Applicable Industries	Acoustic insulation, Domestic appliance, HVAC, Electronics, Automotive, Industrial seal
Use for	Adhesive Tape, Gasket
Material	NBR+PVC
Cell State	Open Cell
Test Standard	JIS, ASTM
Max Thickness	30 mm + With Skin
Material Advantage	More economical and practical, it can also to fill cavities of various types of equipment, consisting of NBR+PVC synthetic rubber foam with an open cell structure. Higher compression foams are available for various purposes such as waterproof, windproof, dust-proof, soundproof, or thermal insulation according to the compression ratio.

specification

NKX-55 can provide the similar performance with EPDM material. But it is more economical and practical than EPDM foam series.

As compressive load (stress) is small, it will not deform the structure after filling in joints. Easy to compress and apply.

Low specific gravity of 0.065; Application and preservation easy as foam pieces do not fuse together.

Please refer to the download center for getting the specific physical performance data for this product item.

Main Applications

> OPEN CELL NBR FOAM

> Made of NBR/PVC foam, Open cell structure, they are often filled with cavity of household appliances

to play the role of sound absorption and noise reduction.

> NKX-55 is more economical and practical, it can also to fill cavities of various types of equipment,

consisting of NBR+PVC synthetic rubber foam with a open cell structure. Higher compression foams

are available for various purposes such as waterproof, windproof, dustproof, soundproof, or thermal

insulation according to the compression ratio.

NKX-55 NBR/PVC FOAM RUBBER

SPECIFICATION

Multipurpose open cell NBR/PVC Foam
Standard grade
Excellent sound-absorbing effect
Roll products can be provided (10,000mm)

Application specific details:
Water-proofing, air sealing, soundproofing and thermal insulation for air conditioners and air cleaners.
For mounting of cowl louvers.
For mounting of center pillars.
For mounting of mirrors.
For domestic appliance

SPECIAL POINT

The some difference from EPDM material:
Although NKX-55 is a NBR series material, but it can provide the similar performance with EPDM material. Like waterproof, windproof, dustproof, soundproof, or thermal insulation according to the compression ratio. However, its aging resistance is not as good as EPDM, and it is not easy to use in low temperature environment.

Basic physical performance:
Cell state: Open cell
Density：60±20 Kg/M³
Temperature range: -30℃ to 80℃
Maximum Size: 1000 x 10000 x 25 mm without skin. (Standard)
Tensile Strength : ≥ 100 KPA
Elongation: ≥ 100%
Compression Set: ≤ 15.0

NBR/PVC
