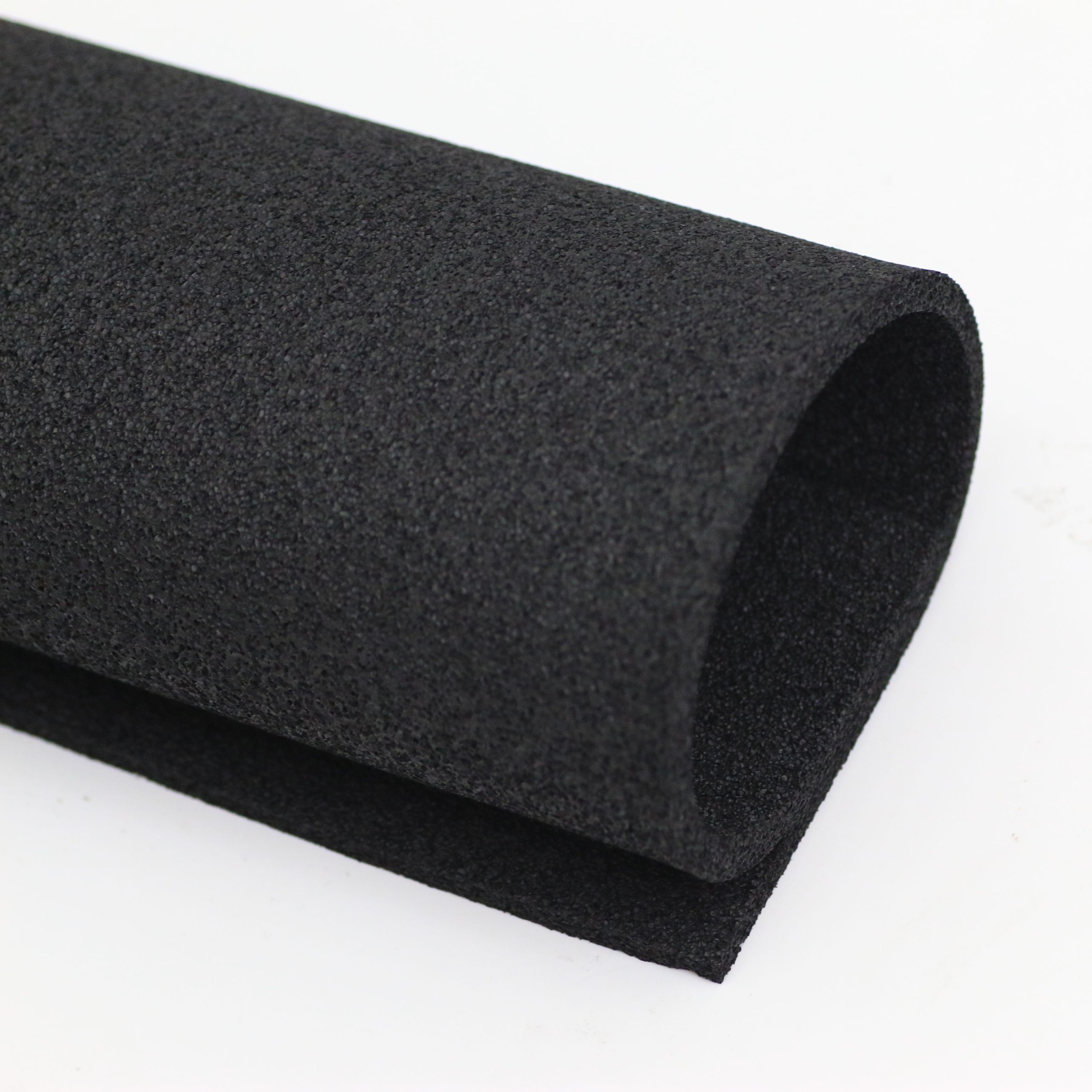

Flame-Retardant EPDM Foam. Use for: Adhesive Tape, GasketMaterial: EPDM. Cell State: Open Cell, Semi-closed Cell.
Test Standard: JIS, ASTM.
| Parameter | Details |
|---|---|
| Product Name | EDK-10F Flame-Retardant Open Cell EPDM Foam |
| Applicable Industries | Automotive, Industrial seal, Domestic appliance, HVAC, Electronics, Acoustic insulation |
| Production Technology | Molded, Extrusion |
| Material | EPDM (HF-1) |
| Cell State | Open Cell |
| Use for | Adhesive Tape, Gasket |
| Test Standard | JIS, ASTM |
| Max Thickness | More than 90mm+ with skin by molding process |
Containing chlorine-free flame retarder and it has obtained UL-94 and HF-1 certification.
Minimal stress facilitates compression; fits snugly to uneven surfaces thereby enabling airtight sealing and soundproofing.
Superior heat, weather, and ozone resistance enables the foam to withstand long-term use.
Please refer to the download center for getting the specific physical performance data for this product item.
> OPEN CELL EPDM /SEMI CLOSED CELL
CASIS ATRIES EDK-10F foam which have obtained UL-94 HF-1 certification are composed of a
flexible foam sealing material consisting of EPDM rubber foam with a semi-closed cell structure
mixed with a flame retarder can be used for waterproofing, air-tightness, soundproofing, or thermal
insulation according to the compression ratio.
> Containing chlorine-free flame retarder, EDK-10F foam has obtained UL-94 and HF-1 certification,
the most stringent standard for flame retardancy of foam. Minimal stress facilitates compression; Fits
snugly to uneven surfaces thereby enabling airtight sealing and soundproofing. Superior heat, weather,
and ozone resistance enables the foam to withstand long-term use.
VERY SIMILAR TO NITTO EPTSEALER EC-100 SERIES
EDK-10F EPDM FOAM
SPECIFICATION
MULTI PURPOSE EPDM
Multipurpose open cell/Semi Closed Cell EPDM
Standard grade
Excellent Flame-retardant
Density：90±20 Kg/M³
Roll products can be provided (10,000mm)
Max thickness of block products up to more than 90mm with skin
Application specific details:
Especially designed for fireproofing, waterproofing, air sealing, soundproofing,Thermal insulation for electric/electronic equipment.
Automobile, electric motors / actuators.
Mobile phones, info processing equipment, household appliances.
Railway, Bus, Subway, Aeroplane, Aircraft, Communal facilities
The biggest difference from EDK-10:
EDK-10F can solve several issues from different flammable environment than EDK-10. It also has the same strong anti-aging performance as EDK-10. Containing chlorine-free flame retarder, EDK-10F foam has obtained UL-94 and HF-1 certification, the most stringent standard for flame retardancy of foam.
Basic physical performance:
Cell state: Open cell / Semi closed cell
Density：90±20 Kg/M³
Temperature range: -40℃ to 150℃
Comply with HF-1 flame retardant standard level
Maximum Size: 1000 x 10000 x 75mm+ without skin. (Standard)
Max thickness of block products up to more than 90mm+ with skin
Pure EPDM
