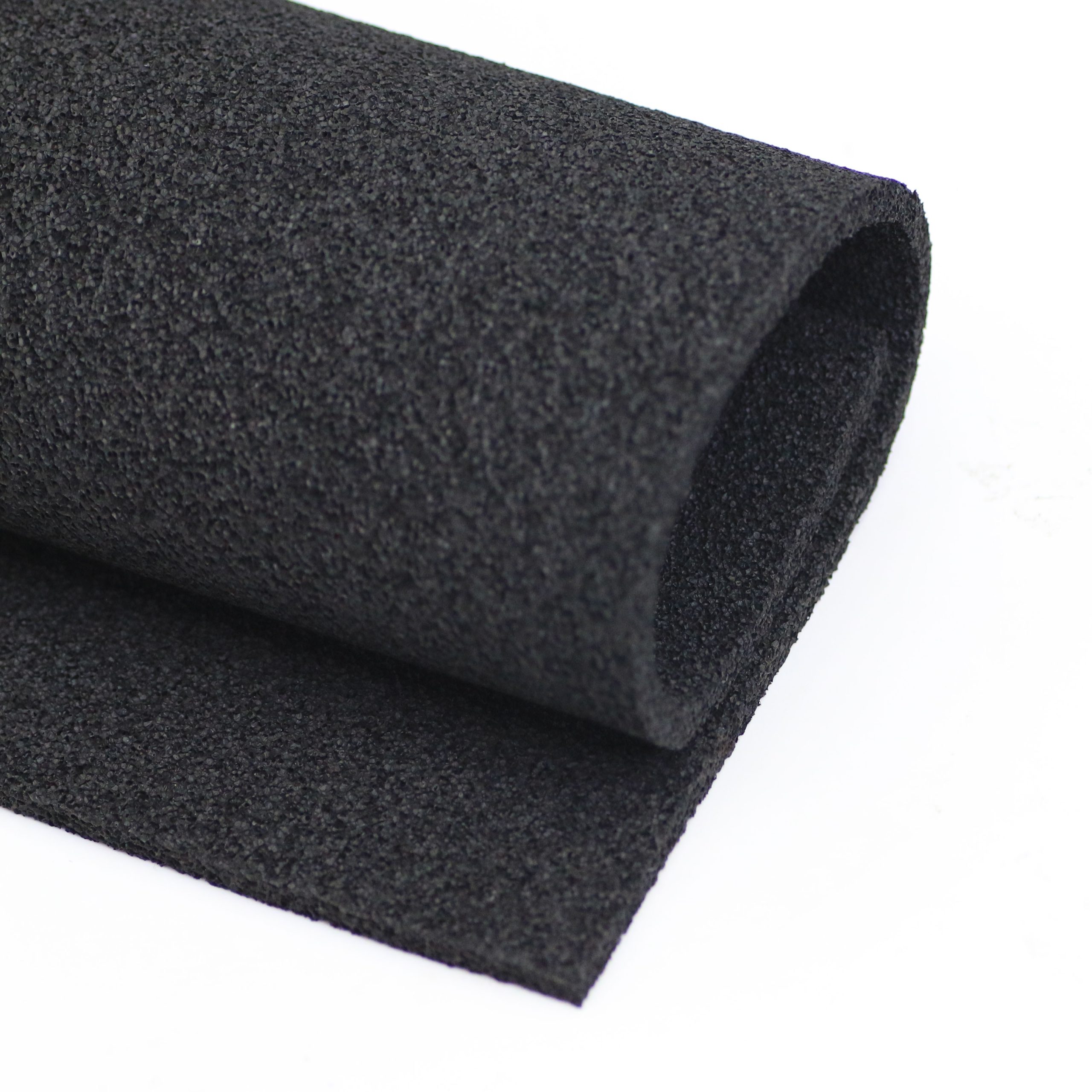

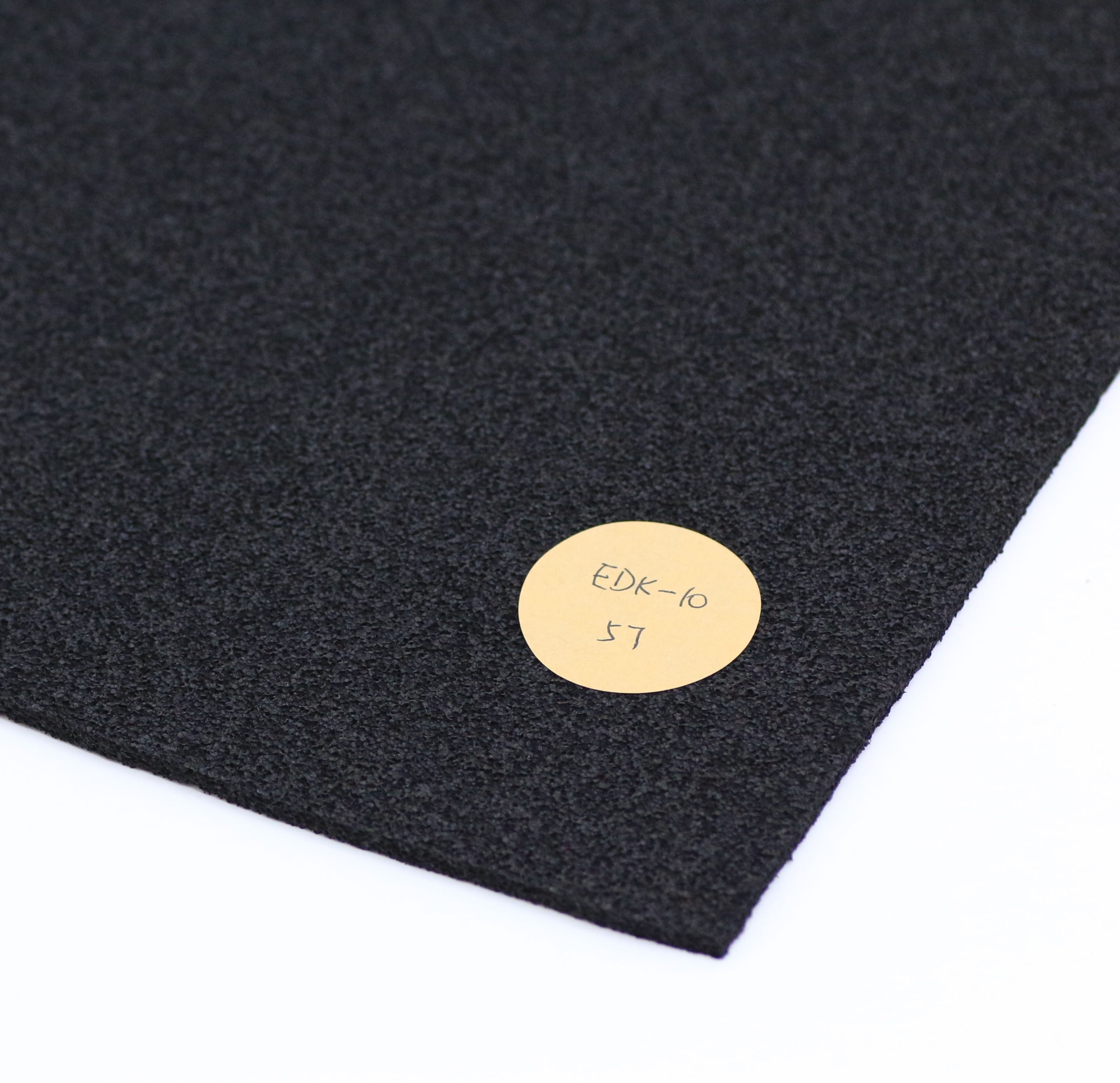

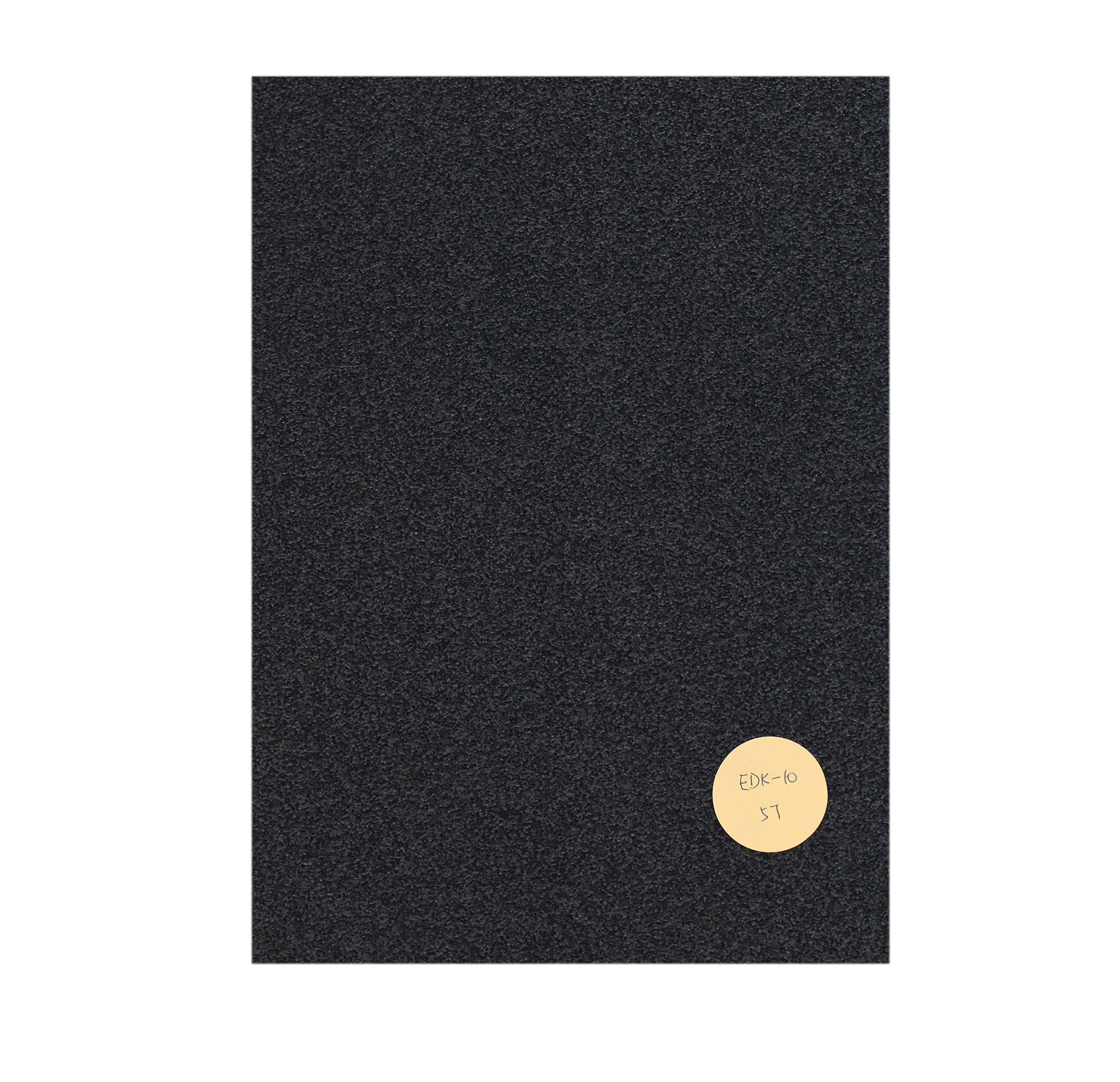

EDK-10 EPDM FOAM-5

  • Product Name: EDK-10 Open Cell EPDM Foam
  • Applicable Industries: Automotive, Industrial seal, Domestic appliance,HVAC, Electronics, Acoustic insulation
  • Production Technology: Molded, Extrusion
  • Material: EPDM Cell State: Open Cell
  • Use for: Adhesive tape, Gasket
  • Test Standard: JIS, ASTM
  • Max Thickness: More than 90mm + with skin by molding process
  • Material Advantage: The most popular sealing material CASIS ATRIES foam to fill cavities of various types of equipment, consisting of EPDM synthetic rubber foam with a semi-closed cell structure.
  • Higher compression foams are available for various purposes such as waterproof, windproof, dust-proof, soundproof, or thermal insulation according to the compression ratio.
INQUIRE NOW

Product Details

VERY SIMILAR TO NITTO EPTSEALER EE1000 SERIES ( THE MOST POPULAR PRODUCT ITEM )

> OPEN CELL EPDM /SEMI CLOSED CELL

Foam sealing material with superior resistance to weather, cold, heat and chemicals.

> CASIS ATRIES foam sealing material to fill cavities of various types of equipment,

consisting of EPDM synthetic rubber foam with a semi-closed cell structure. Higher

compression foams are available for variouspurposes such as waterproof,windproof,

dust-proof, soundproof, or thermal insulation according to the compression ratio.

specification

MULTI PURPOSE EPDM

Multipurpose open cell/Semi Closed Cell EPDM



Standard grade

Excellent ageing resistance

Density: 90±20 Kg/M³

Roll products can be provided (10,000mm)

Max thickness of block products up to more than 90mm with skin

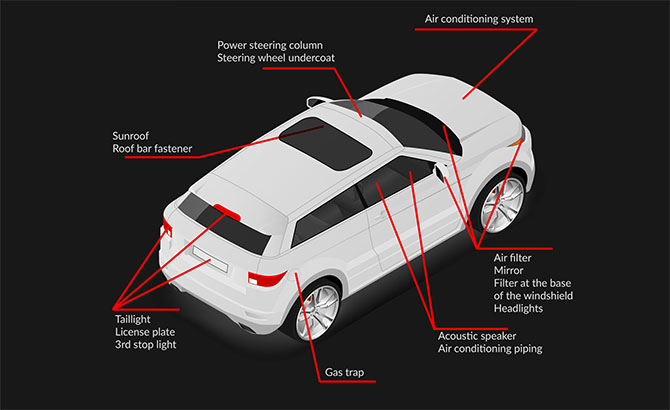

> Water-proofing, air sealing, soundproofing and thermal insulation for air conditioners and air cleaners.

> For mounting of cowl louvers.

> For mounting of center pillars.

> For mounting of mirrors.

> Sealing material for end rail.

> Airproof/waterproof packing between sills and footings.

> Sealing material for roof tile (ridge, verge, and valley).



SPECIAL POINT

The biggest difference from NITTO:

CASIS can provide thicker product thickness than NITTO. Just due to this feature, customers can enjoy more product utilization rate. EDK-10 series can reach to 65-75mm thickness without skin.

Basic physical performance:

Cell state: Open cell / Semi closed cell

Density：90±20 Kg/M³

Tensile strength: ≥ 80 KPa

Temperature range: -40℃ to 110℃

Maximum Size: 1000 x 10000 x 75mm+ without skin. (Standard)

Max thickness of block products up to more than 90mm with skin

Main Applications

OUR ADVANTAGES

During laminating the solar PV panels, the silicone rubber membrane transfers the laminator’s temperature and pressure to modules. The good silicone membranes work at least 6,000 laminating cycles with good EVA-resistant ability.

KS-EXR268 Series is a specially developed membrane consisting of a silicone backing material and a unique covering layer. This covering layer is extremely resistant to outgassing and related decomposing processes of EVA films. This makes our membrane particularly durable and increases your machine running times.

It has an EVA resistant fluorine laminated surface with additional fabric reinforcement.

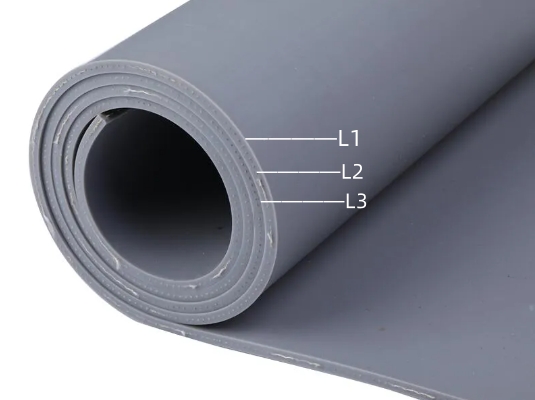

Structure

1# Grey silicone – working layer
2# 1 Ply premium Kevlar fabric reinforcement
3# Grey silicone – working layer
